• Finite Element analysis used in vehicle to promote product performance.
• Whole Trailer body Electrophoresis Painting, resistance, painting effect can reach above 10 years.
• High Stength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
• 42 tough ribs design, Ensure the safety and carrying capacity of trailer.
• Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading
• Trailer Main Parts Warranty Period Reach 24 Months.

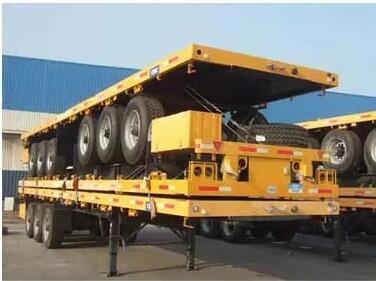

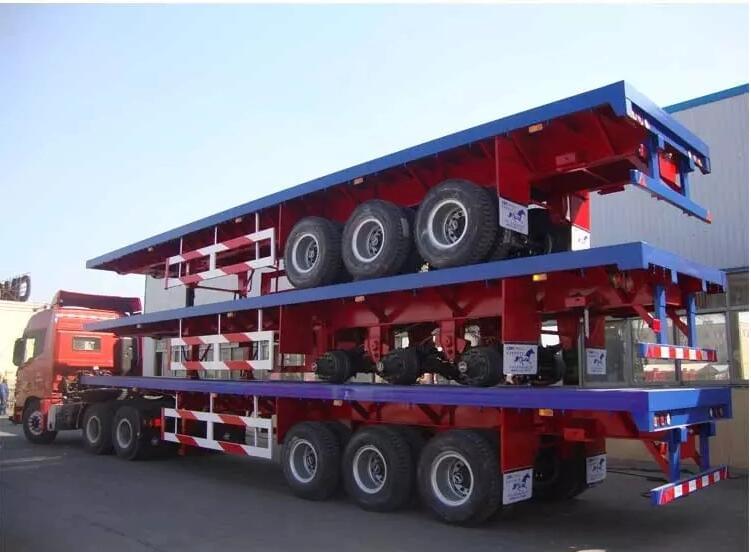

20 Feet Flatbed Trailer | 40 Feet Flatbed Trailer | 45 Feet Flatbed Trailer |
2 Axles | 3 Axles/4 Axles | 3 Axles/4 Axles |
20-60 Tons | 30-80 Tons | 30-80 Tons |
Gooseneck Type | Gooseneck Type | Gooseneck Type |
Tandem Type | Tandem Type | Tandem Type |
Extendable Type | Extendable Type | Extendable Type |
20 Feet Flatbed Trailer | 40 Feet Flatbed Trailer | 45 FeetFlatbed Trailer |
Vehicle Painting | Vehicle Painting | Vehicle Painting |
Electrophoresis painting | Electrophoresis painting | Electrophoresis painting |
Main Beam | Main Beam | Main Beam |
Material:Q345/T700 | Material:Q345/T700 | Material:Q345/T700 |
Upper Plate Thick:12mm | Upper Plate Thick:16mm | Upper Plate Thick:16mm |
Middle Plate Thick:6mm | Middle Plate Thick:10mm | Middle Plate Thick:10mm |
Lower Plate Thick:14mm | Lower Plate Thick:18mm | Lower Plate Thick:18mm |
Beam Height:500mm | Height Height:500mm | Height Height:500mm |
Platform Thick:2.5mm | Platform Thick:2.5mm | Platform Thick:2.5mm |
Trailer Size | Trailer Size | Trailer Size |
L 7000mm | L 12400mm | L 13950mm |
W 2500mm | W 2500mm | W 2500mm |
H 1570mm | H 1570mm | H 1600mm |
Axles | Axles | Axles |
2 Axles 13T/16T CIMC/FUWA/BPW | 3/4Axles 13T/16T CIMC/FUWA/BPW | 3/4 Axles 13T/16T CIMC/FUWA/BPW |
Tire | Tire | Tire |
12R22.5 (8/12 Pieces) | 12R22.5 (8/12 Pieces) | 12R22.5 (8/12 Pieces) |
Rim | Rim | Rim |
9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (12/16 Pieces) Steel/Aluminum | 9.00*22.5 (12/16 Pieces) Steel/Aluminum |
Leaf Spring | Leaf Spring | Leaf Spring |
90mm*13mm/90mm*16mm 10 Pcs | 90mm*13mm/90mm*16mm 10 Pcs | 90mm*13mm/90mm*16mm 10 Pcs |
Kin Pin | Kin Pin | Kin Pin |
2″/3.5″JOST | 2″/3.5″JOST | 2″/3.5″JOST |
Landing Gear | Landing Gear | Landing Gear |
28 Tons CIMC/JOST Two Speed | 28 Tons CIMC/JOST Two Speed | 28 Tons CIMC/JOST Two Speed |
Twist Lock | Twist Lock | Twist Lock |
4 Sets | 12 Sets | 12 Sets |
